Unveiling the Ultimate Rotary Ground Solution: Meridian Laboratory

Rotating electrical grounds are essential in various industrial applications, enabling the seamless transfer of current between rotating components and stationary systems. This blog delves into the intricate world of rotary grounds, comparing their performance, benefits, and drawbacks. Whether you're in the welding, plating, or microchip manufacturing sector, understanding the nuances of these systems is paramount for optimal operational efficiency.

The Need for Rotary Grounds: Rotary grounds bridge the gap between stationary and rotating components in applications involving high currents. Imagine the analogy of a car battery, where efficient grounding ensures power flows smoothly through a circuit. Similarly, industrial scenarios demand reliable current transfer for processes like welding, plating, and microchip manufacturing.

Common Applications of Rotary Grounds:

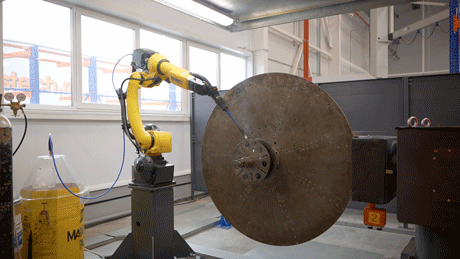

1. Welding: Tank and pipe welding, car frame manufacturing, steel structure fabrication, and automated welding equipment all rely on rotary grounds for consistent current transfer during rotation.

rotary ground gif

2. Plating and Electro Polishing: To achieve uniform plating or polishing results, rotary grounds maintain steady current flow as components rotate, ensuring even distribution across surfaces.

3. Microchip & Silicon Wafers: Processes like sputtering and deposition in microchip manufacturing employ rotary grounds for precise material application onto substrates, leading to high-quality end products.

The Challenge of Fluctuating Currents: In any rotating system, maintaining a stable current flow is critical. Fluctuations, even in the range of a few amps, can result in compromised end products, increased maintenance, and system downtime. Several types of rotary grounds are available, each with varying performance levels.

Comparing Rotary Ground Types: This blog by Meridian Laboratory assesses seven rotary ground options, ranging from DIY solutions to commercially available models, shedding light on their performance, benefits, and limitations. The rotary grounds under scrutiny include:

  1. Ball Bearings

  2. Carbon Brush Block

  3. Sumner ST-107

  4. Lenco Model C

  5. Tweco RG-140

  6. Braided Metal Strap & Clamp

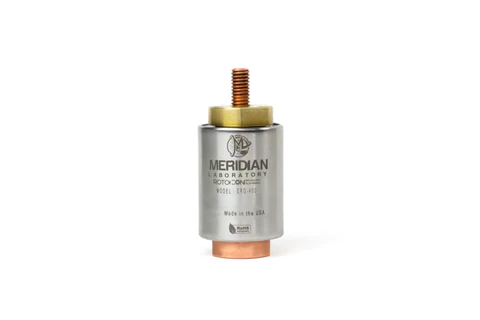

  7. Meridian Laboratory's ROTOCON® ERG-400

Performance Analysis: The performance of each rotary ground is evaluated by examining the variance in current under both constant rotation and indexing. While some solutions exhibit significant fluctuations, Meridian Laboratory's ROTOCON® ERG-400 stands out with consistent current delivery, showcasing a minimal fluctuation of just 0.1 amps. In comparison, other methods like the ball bearing solution display variations as high as 200 amps.

Understanding the Differences: It's evident that not all rotary grounds are created equal. While DIY options might seem appealing due to their lower upfront costs, their inconsistent performance and frequent maintenance needs ultimately impact operational efficiency. Commercially available models, though offering variety, often require adjustments, lubrication, and replacements over time.

The ROTOCON® ERG-400 Advantage: Meridian Laboratory's ROTOCON® ERG-400 Rotary Ground emerges as the ultimate solution, combining durability, reliability, and seamless performance. With minimal fluctuation, no maintenance requirements, and a robust industrial design, the ROTOCON® ERG-400 stands as a long-term, maintenance-free choice for industrial applications.


In the realm of rotary grounds, performance is paramount. The choice between various options has far-reaching consequences, affecting product quality, maintenance costs, and overall efficiency. When seeking a rotary ground solution that guarantees consistent current delivery and minimizes downtime, the ROTOCON® ERG-400 from Meridian Laboratory emerges as the frontrunner. With its proven track record and unmatched reliability, it's the smart choice for industries that demand excellence.

Want to learn more? Read the blog here: Just How Bad Is Your Rotary Ground Performing?
